Heavy Power Connector 32Pos Cage-clamp Type
The HE-032-MS (male) and HE-032-FS (female) are 32-pole spring-clamp inserts from the HE series, designed to fit 32B housings. Rated at 16A and 500V, they handle both power and signal transmission in a single compact unit. The spring-clamp termination is what makes these inserts stand out. Simply strip the wire, push it into the clamp - no screwdriver needed. With 32 poles, the time savings really add up during cabinet assembly. The spring mechanism maintains constant contact pressure, so vibration won't loosen connections over time, which means less maintenance down the road.
Technical Specifications
| Termination method |
Cage-clamp Terminal |
| Gender |
Male & Female |
| Rated Current |
16A |
| Rated Voltage |
500V |
| Rated Impulse Voltage |
6kV |
| Rated Voltage Acc.to UL Csa |
600V |
| Insulation Resistance |
≥10¹⁰Ω |
| Material |
Polycarbonate |
| Limiting Temperature |
-40℃...+125℃ |
| Flammability Acc.to UL94 |
V0 |
| Mechanical Working Life-mating Cycles |
≥500 |

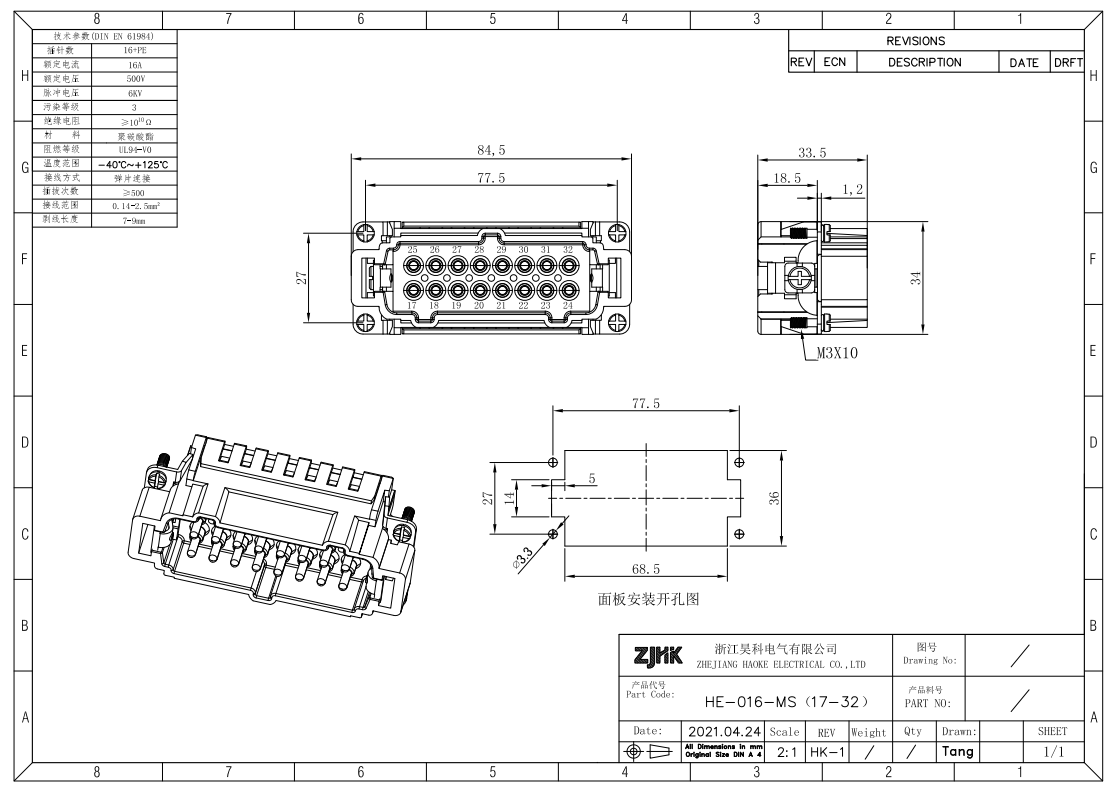

Product Drawings
HE-016-MS(17~32)
HE-016-FS(17~32)
Product Overview
The insulator is made of V0-rated polycarbonate, and the contacts are copper alloy with silver plating, ensuring reliable conductivity across a wide temperature range of -40°C to +125°C. Wire sizes from 0.14 to 2.5mm² (26-14 AWG) are supported, with a strip length of 7-9mm. These inserts are widely used in industrial automation, control cabinets, and power distribution equipment where multiple circuits need to be connected quickly and reliably. They are available in both crimp and screw versions as well, but the spring-clamp option is often the go-to choice for customers looking to speed up wiring and reduce maintenance.
Application Scenarios
Heavy-duty connectors are gradually becoming an important development direction for electrical connections in rail transit. Their flexibility and integration capabilities not only improve system design efficiency but also facilitate later maintenance. As rail transit systems continue to upgrade, the performance requirements for connectors will become increasingly stringent, and manufacturing companies like us are continuously providing the industry with more stable and practical connection solutions.
