Waterproof 32pins Screw Heavy Duty Connector

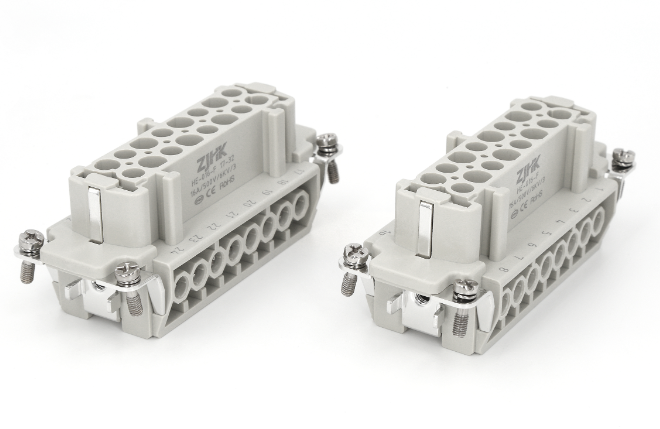

The HE-032-M/F standard connector is designed for 32B size hoods and housings. Constructed with two 16-pin inserts, these connectors feature screw terminals that enable easy installation without specialized tools, making them ideal for straightforward working environments.
Product Specifications
| Parameter | Specification |
|---|
| Termination method | Screw terminal |
| Gender | Male/Female |
| Number of contacts | 32 |
| Model | HE-032-M/HE-032-F |
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6kV |
| Pollution Degree | Ⅲ |
| Rated Voltage Acc.to UL Csa | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Material | Polycarbonate |
| Flammability Acc.to UL94 | V0 |
| Mechanical Working Life-mating Cycles | ≥500 |
| Contacts | Copper Alloy |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-2.5mm² |
| AWG | 26-14 |
Product Technical Drawings
HE-016-M(17~32)
HE-016-F(17~32)

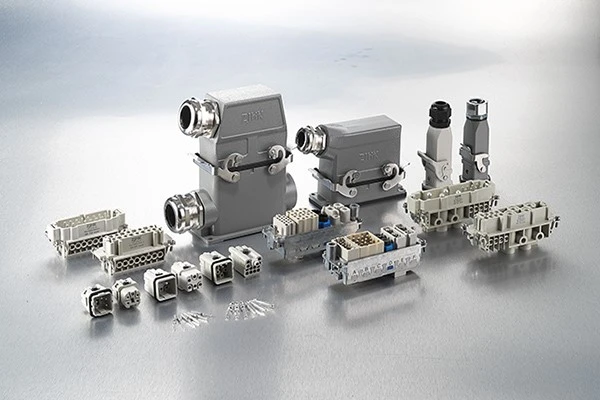

Product Series Expansion
The HE series represents one of our core product lines. We also manufacture multiple connector series including HA, HQ, and HM to address diverse application requirements across various industries. Our comprehensive offering extends to complementary products such as hoods, housings, cable glands, and specialized tools. Contact us for consultation and ordering.
Professional Facilities and Warehouse
SKYRAY INSTRUMENT: Skyray Instrument is a recognized leader in the heavy-duty connector industry, delivering high-performance, reliable connectivity solutions for challenging applications including industrial automation, rail transit, and energy equipment. Through advanced engineering and strict quality control, our products perform reliably even under extreme conditions, enhancing system safety, operational efficiency, and long-term durability.
WAREHOUSE: Our vertically integrated business model combines extensive warehouse facilities with in-house manufacturing capabilities for heavy-duty connectors. By maintaining comprehensive component inventories and leveraging deep production expertise, we efficiently deliver both standard and fully customized connector designs. This synergy ensures reliable, responsive supply chain management and rapid adaptation to client requirements.

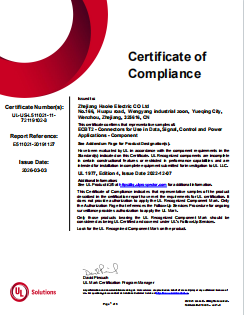

Certifications
